| MOQ: | 1 |
| Price: | 28000~22000 |
| Standard Packaging: | wooden box |
| Delivery Period: | According to requirement |
| Payment Method: | T/T |
| Supply Capacity: | 30PCS/30Day |

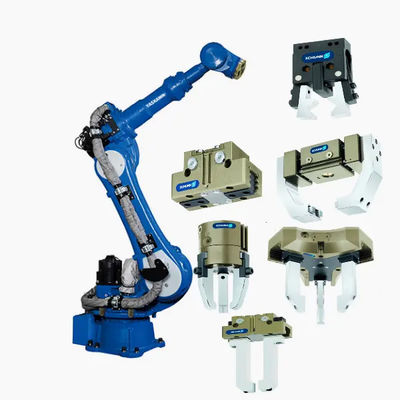

YASKAWA GP110 Industrial Robot Arm For Pick Place 110kg Payload 2236mm Reach Arm Robots With Schunk Robotic Gripper
Overview
The Yaskawa GP110 robot is a high-speed, compact, and reliable robot designed for a wide range of industrial applications. Its advanced motion control algorithms provide precise and smooth movements, making it ideal for high-quality manufacturing and assembly operations. The GP110 is a highly customizable solution that can be configured to meet specific application requirements.
Specification
| Model | GP110 |
| Application | material handling, machine and press tending tasks |
| Maximum reach | 2236mm |
| Maximum payload | 110kg |
| Pose repeatability (ISO 9283) | ± 0.07mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 660 kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 180° to -180° |
| L | 155° to -90° |
| U | 90° tp -80° |
| R | 360° to -360° |
| B | 125° to -125° |
| T | 360° to -360° |
|
|
