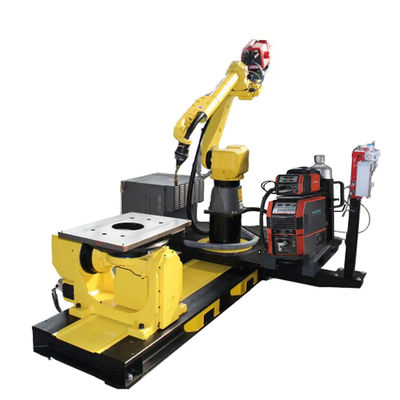

Fanuc Welding Robot Arm ARC Mate 120iD 1831MM Reach With Megment Welder Integrated Solution For Robotized Arc Welding

Place of Origin China
Brand Name Fanuc
Model Number ARC Mate 120iD
Minimum Order Quantity 5
Price 26000~20000
Packaging Details wooden box
Delivery Time 5-8 work week
Payment Terms T/T
Supply Ability 5PCS/30Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max. Load Capacity 25 Kg Max. Reach 1831 Mm
Controlled Axes 6 Repeatability (mm) ± 0.02
Mechanical Weight (kg) 250 Robot Footprint [mm] 343 X 343
Controller R-30iB Plus Mounting Position Floor/Upside Down/Angle
Ambient Temperature [° C] 0-45 Body Standard/optional IP54
Leave a Message
Product Description

Overview

  • The ARC Mate 120iD is an excellent all-around welding robot with a slim articulated design that excels at welding in narrow jigs.
  • It has a new drive train for significantly faster axis speeds and a repeatability of 0.02 mm thanks to its high rigidity. It has a large working envelope and can reach in very close to its own base for maximum operational flexibility. The ARC Mate 120iD increases productivity and profitability by combining FANUC dependability with higher motion performance. It features low operating costs and an easy installation.
  • The welding hose pack and cable management system are fully integrated in the ARC Mate 120iD series. The Fanuc ARC Mate 120iD also has a large 57 mm hollow wrist and hollow arm for trouble-free cable routing and snag-free access.

Specification:

Brand Name
Fanuc
Warranty
1 Year
Key Selling Points
Automatic
Weight (KG)
250
Usage
Arc Welding
Max. load capacity
25 kg
Max. reach
1831 mm
Controlled axes
6
Repeatability (mm)
± 0.02
Mechanical weight (kg)
250
Robot footprint [mm]
343 x 343
Controller
R-30iB Plus
Mounting position
Floor/Upside down/Angle
Ambient temperature [° C]
0-45
Body standard/optional
IP54
