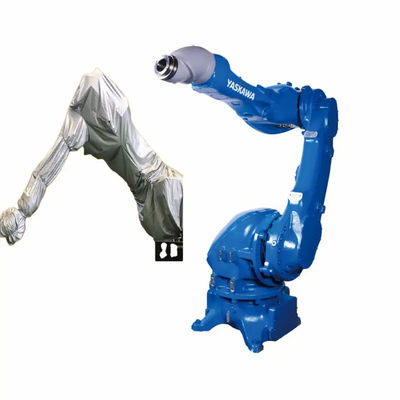

YASKAWA MPX2600 Painting Robot Arm High Speed Robot Painting Machine With Protective Suits

Place of Origin China
Brand Name Yaskawa
Model Number MPX2600
Minimum Order Quantity 1
Price 35000~25000
Packaging Details wooden box
Delivery Time According to requirement
Payment Terms T/T
Supply Ability 5PCS/30Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Controlled Axis 6 Payload 15 Kg
Horizontal Reach 2000 Mm Vertical Reach 3643 Mm
Controller DX200 Repeatability ±0.2 Mm
Maximum Speed 2.0 M/s Brakes All Axes
Power Consumption 3 KVA Mount Floor, Wall, Ceiling
High Light

YASKAWA Painting Robot Arm

,

MPX2600 Painting Robot Arm

,

15kg robot painting machine

Leave a Message
Product Description

Robot Painting Machine YASKAWA MPX2600 Payload 15kg Robotic Car Painting High-Speed Painting Robot With Protective Suits

Overview

the Yaskawa MPX2600 robot offers a range of advantages for painting applications, including multiple arm lengths, high payload capacity, flexible mounting options, user-friendly interface, reliable operation, and energy efficiency. These features make ita popular and effective solution for a wide range of painting applications, from automotive and aerospace to furniture and consumer goods.



Specification

Weight (KG)
265
Machine Type
Painting Equipment
Controlled Axis
6 Axis
Payload
15 kg
Horizontal Reach
2000 mm
Vertical Reach
3643 mm
Controller
DX200
Repeatability
±0.2 mm
Maximum speed
2.0 m/s
Brakes
All axes
Power consumption
3 kVA
Mount
Floor, Wall, Ceiling
