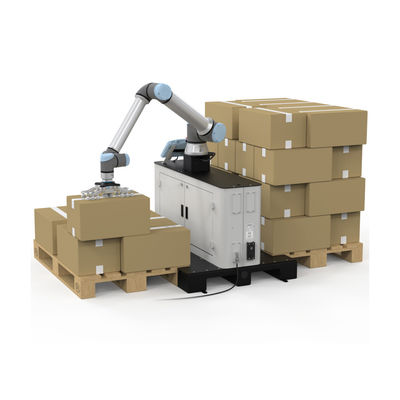

Universal Robot UR20 Collaborative Robot Arm 20kg Payload 1750mm Reach With Onrobot Gripper For Palletizing

Place of Origin China
Brand Name Universal Robot
Model Number UR20
Minimum Order Quantity 1
Price 40000~35000
Packaging Details With Wooden Box
Delivery Time 5-8 Week
Payment Terms T/T
Supply Ability 30PCS/30Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Typical TCP Speed 1 M/s (39.4 In/s) Safety 17 Configurable Safety Functions
Reach 1750 Mm / 68.9 In Warranty 1 Year
Materials Aluminium, Plastic, Steel Repeatability ±0.05mm/±0.03mm(under Normal Conditions)
Application Pick Place, Welding, Palletizing, Handling, Assembly Dimension(L*W*H) 460 Mm * 449 Mm * 254 Mm
Leave a Message
Product Description

Product Description:

The Universal Robot UR20 is an industrial robot that offers a great many advantages for automation. Its unique design makes it possible for it to collaborate with human operators without the need for physical barriers, creating a level of flexibility that other robots can't match. Furthermore, it is very light and compact, enabling easy movement and integration with production lines.

In addition to its amazing physical features, the UR20 is easy to program and use with different software platforms, meaning that it can be quickly customized for any task. This combination of customization and enhanced performance makes it an ideal choice for industrial applications. Plus, its reputation for reliability and durability ensures that it will be available when needed, and that it won't fail when it's needed the most.

Overall, the Universal Robot UR20 is a highly versatile and collaborative industrial robot that can bring performance and reliability to any automated production line.



Features:

The Universal Robot UR20 is an ideal choice for industrial collaborators, as it has several advanced features and a great reach. With a maximum payload capacity of up to 20 kg and a maximum reach of 1750 mm, this robot is highly versatile and can be applied to a wide range of tasks. It has been designed with force sensing technology allowing for safe and secure operation alongside human operators.

The UR20 is built for convenience and portability, weighing in at a light weight that makes it easy to move and integrate into different production lines. Moreover, it has an intuitive programming interface that lets users easily configure the robot and integrate its use with a wide range of software platforms. It also offers several safety features, ensuring secure and reliable operation in any industrial environment. These features include collision detection and automatic stop functions.



Technical Parameters:

Parameter Value
Application Pick Place, Welding, Palletizing, Handling, Assembly
Materials Aluminium, Plastic, Steel
Axes Number 6
Robot mounting Any Orientation
Robot Weight 64 Kg / 141.1 Lbs
Typical TCP speed 1 M/s (39.4 In/s)
Warranty 1 Year
Reach 1750 Mm / 68.9 In
Power Supply 110-240 VAC
Payload 20 Kg / 44.1 Lbs


Applications:

The Universal Robot UR20 is a highly versatile robot designed for collaborative work with human operators.

It can be used for a multitude of applications, including pick-and-place, assembly, and packaging tasks.

In the automotive industry, the UR20 is used for machine tending, material handling, and quality control.

In the electronics industry, it is utilized for soldering, testing, and inspection.

Notably, the UR20's design allows for flexible mounting and mobility, making it a suitable choice for smaller spaces and mobile operations.

All in all, the UR20 is a dependable and practical solution for diverse automation needs in both the automotive and electronics industries.



Support and Services:

Collaborative Robot Technical Support & Service

We provide technical support and service for our collaborative robots. Our team of experts is available to help with any questions or concerns you may have. We offer technical support through our website, email, telephone and online chat. We also offer onsite visits and maintenance services as needed. Our team of experts can provide advice and guidance on programming, safety, installation and maintenance.

We are committed to providing the highest quality of service and support for our collaborative robots. If you have any questions or concerns, please contact us and we will be happy to help.



Packing and Shipping:

Collaborative Robot packaging and shipping is designed to protect the robot from any damage during shipping. It includes the following:

  • Robot in shipping box
  • Shock-resistant foam to protect robot
  • Tape to seal the box
  • Fragile label to indicate special handling
  • Shipping label with delivery address
