HCR 20 Hybrid Cobot Collaborative Robot Arm High Payload 100kg Vehicle Payload
  • name
  • name
  • name

HCR 20 Hybrid Cobot Collaborative Robot Arm High Payload 100kg Vehicle Payload

MOQ: 1 Set/Sets
Price: Negotiation
Standard Packaging: Packing type: cardboard box/non-fumigation wooden box
Supply Capacity: 100 Set/Sets per Month
Detail Information
Product Description
Detail Information
Place of Origin
Shanghai, China (Mainland)
Brand Name
SIASUN
Condition:
New
Application:
Assembly
Weight:
550kg
Dimension(L*W*H):
1280mm*600mm*700mm
Warranty:
One Year
Product Name:
Collaborative Robot HCR20 Hybrid Cobot
Cobot Payload:
20kg
Vehicle Payload:
100kg
Operating Accuracy:
±0.05mm
Parking Accuracy:
±10mm
Port:
Shanghai Port
Highlight:

multi axis robotic arm

,

high precision robotic arm

Product Description
SS Cobot

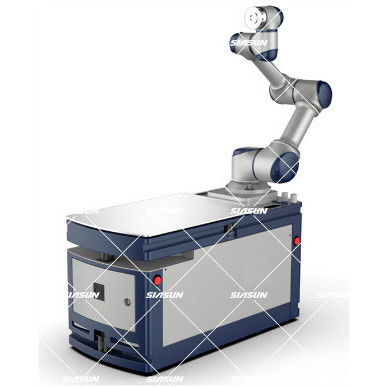

SIASUN Collaborative Robot  HCR20 Hybrid Cobot

Introduction

SIASUN HCR20 Hybrid Cobot adopts Natural Navigation and 20kg payload Cobot technology.

With a strong SIASUN AGV Dispatching System, HCR20 can operate from both sides of the vehicle. HCR20 combines perfect safety devices and modularized tray/fixture, together with various advantages of Cobot such as easy-to-use and safe, it makes deployment much simple and dramatically improves economic efficiency for end users.



 Characteristics

 1. Various Navigation Optional, including Natural/Laser/Multi-type navigation

 2. Cobot Payload up to 20kg, Load Tolerance 100kg

 3. Safety Interlock between Cobot and Vehicle, 360°Obstacle Avoidance

 4. Air Compressor Integrated



Type HCR20
Vehicle Size 1280mmx600mmx700mm
Gross Weight 550kg
Cobot TCP Speed 0~1m/s
Moving Speed 0~1m/s

Cobot

Payload

 20kg
Vehicle Payload  100kg
Safety Device

Emergency Button/

Laser Collision Detection/Cobot Collision/others
Operating Accuracy ±0.05mm
Parking Accuracy ±10mm
Moving Direction Forward/Reverse/Turning
Navigation Natural/Laser/Multi-Type
Battery Lithium Battery 48VDC
Full Load Duration 5h
Charging Manual/Auto Battery Change Auto Charge







HCR 20 Hybrid Cobot Collaborative Robot Arm High Payload 100kg Vehicle PayloadHCR 20 Hybrid Cobot Collaborative Robot Arm High Payload 100kg Vehicle Payload
