MOQ:	1 Set/Sets
Price:	$37,000.00 - $38,000.00 / Sets
Standard Packaging:	Packing type: cardboard box/non-fumigation wooden box
Supply Capacity:	100 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin

Shanghai, China (Mainland)

Brand Name

HAN'S

Application:

Assembly,welding, Painting

Warranty:

One Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Voltage:

100-240VAC

Usage:

For Assembly, Pickup,welding, Grinding,painting

Type:

E10

Payload:

10kg

Weight:

40kg

Reach:

1000mm

Repeatability:

± 0.05mm

Port:

Shanghai Port

Highlight:

universal collaborative robot

multi axis robotic arm

Product Description

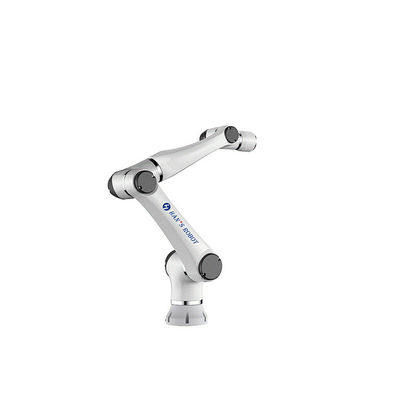

E10 Collaborative Painting Robot for Industry

E10 Collaborative Painting Robot for Industry

Introduction

HAN'S Elfin robots are useful for integrated automatic production line, assembly, pickup,welding, grinding,painting,etc.

5kg in rated load with 23kg in weight

Modularity: All-in-one module of reducer, motor, encoder and drive

High accuracy: Repeatability up to ±0.05mm

Type	E10	Tool Speed	1 m/s	Programming	graphical programming, remote process call
Weight	40kg	Repeatability	±0.05(in normal condition)	IP Class	IP54
Payload	10kg	Degree of Freedom	6	Cooperative Operation	10 advanced configurations for safety
Reach	1000mm	Control Box Size	400366263mm	Main Material	aluminum alloy
Power	350w in typical cycle	I/O Port	digital input/output:4, analog input:2	Working Temperature	0-50º
Joint Range	±360º	I/O Source	24V 2A	Power Input	100-240VAC,50-60Hz
Joint Speed	90º/s	Communication	TCP/IP	Cable	cable to connect the control box:5m, cable to connect teach pendant:5m
