Unique Crank Option Epson G3-251 Scara Robot For Pick And Place

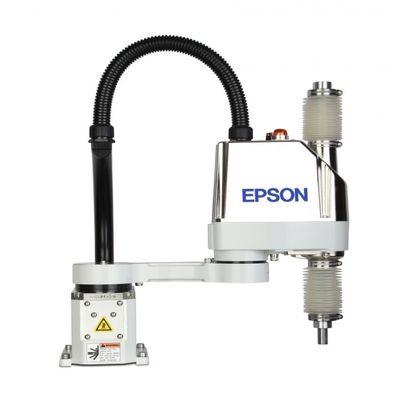

Epson G3 SCARA robot
250 | 300 | 350

• Excellent cycle time and accuracy
• table mounted, ceiling mounted and sidewall mounted
• Unique crank options
• ISO clean & ESD certified models



With excellent cycle time, Epson G3 robot leads the development of the industry. Epson G3 robot has more than 30 models with arm length from 250 to 300 mm, which is suitable for high precision and high speed applications requiring high performance and low cost. G3 SCARA robot is an ideal choice for hard drive assembly, laboratory automation, electronic product assembly, medical equipment assembly, photon, semiconductor, communication, solar energy and other applications.


The unique feature of G series products lies in its new arm bending option. Through this option, users can purchase G3 arms bent to the left or right to maximize the utilization of the working area and occupy a small working space. G3 arms are available in arm length ranges of 250, 300 and 350 mm, with a Z-axis of 150 mm (120 clean) in length. It also provides table mounting, sidewall mounting and ceiling mounting configurations, as well as clean / ESD configuration, giving you more choices.


Epson G3 SCARA robot
Features and advantages
Epson began to use our E-Series production line to produce compact SCARA robots about 10 years ago. Today, after two generations of products, G3 SCARA arm still leads the compact SCARA market. Although G3 arm is small in size, it contains all high-performance components and design concepts. Other G-Series robots, such as high rigid arm and powerdrive servo technology, also have very high performance and achieve a more compact and lower cost mode.

High performance

• Excellent range of motion and maximum efficiency
• 0.41 second cycle time to improve overall component throughput
• Excellent acceleration / deceleration rate for smooth start / stop movement
• The maximum speed of 4400 mm / s makes the parts move faster and more accurately
• Unique high rigidity arm design for low vibration
• High altitude proportion, which can realize 24-hour rapid cycle



Variety of arm types and configuration

• The range of arm length is 250, 300 and 350mm, users can choose the best length according to their needs (can not be generalized)
• Desktop and multi-function installation (ceiling / wall mounted) models
• ISO clean & ESD certified machine for electrostatic sensitive applications such as semiconductor and hard drive assembly
• The unique left and right bending arm model can provide maximum work efficiency


First class controller and development software

• Epson RC + leads the industry in ease of use and saves development time
• Using G3 robot, two-level controller products can provide higher performance and low-cost solutions
• Integrated options maximize system performance and reduce overall development time (see options page for more performance)
• High performance processing function, faster than similar models


Suitable for a variety of applications and industries

• Automobile - mirror / glass assembly, ignition module assembly, headlamp and tail lamp assembly and test, clutch assembly, fuel injector assembly, instrument panel assembly
• Hard drive - cover, hard disk polishing, cassette assembly, high precision drive assembly
• Medical products: scalpel blade processing, dental instrument insertion molding, pacemaker battery assembly, line quota laser welding, hearing aid assembly
• Laboratory automation - pipette encapsulation, DNA sequencing, blood analysis, tube capping, tube handling
• Consumer products - paint brush assembly, electric toothbrush assembly, electric saw assembly, connector assembly
• Industrial products - smoke detector assembly, optical fiber connector assembly, light bulb assembly, hydraulic valve test
• Communication - mobile phone assembly and testing, radio assembly and testing
• Pharmaceutical - customized dispensing, tablet packaging, protein crystal analysis
• Solar panel assembly
• Semiconductors - assembly and testing of custom chips, wire bonding, automatic board testing, assembly of avionics components
• Electronic PC board detection and automatic cleaning of circuit board components
