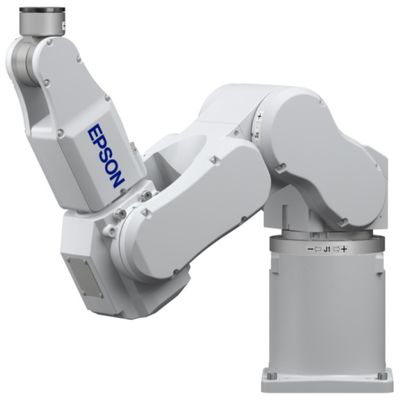

Light And Compact Prosix C4 Series 6 Axis Industrial Robot Arm
  • name
  • name
  • name
  • name
  • name

Light And Compact Prosix C4 Series 6 Axis Industrial Robot Arm

MOQ: 1
Price: USD$27778
Delivery Period: 2 months
Payment Method: L/C, T/T
Supply Capacity: 99
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
EPSON
Certification
CE
Model Number
C4-A601
Braking:
All 6 Axes Have
Repeat Positioning Accuracy:
+ / - 0.02mm
Load (kg):
Max 4 / Rated 1
Cycle Time:
0.37 Sec
Weight:
27 Kg
Installation Type:
Table, Ceiling , Angle
Cleanliness And ESD Standard:
ISO 3 Clean & ESD
Subscriber Line:
Wire: 9/Air: 4
Temperature:
5- 40 Deg C
Humidity:
10 - 80% (non Condensing
Minimum Order Quantity:
1
Price:
USD$27778
Delivery Time:
2 months
Payment Terms:
L/C, T/T
Supply Ability:
99
Highlight:

Prosix C4 Series Industrial Robot Arm

,

Compact Industrial Robot Arm

,

Light Industrial Robot Arm

Product Description





C4-A601

Core specifications		 Repeat positioning accuracy: + / - 0.02mm
Load (kg): Max 4 / Rated 1
Cycle time: 0.37 sec(C4-A601)
Weight: 27 kg
Arm length Horizontal arm length (to mounting surface): 665mm
Horizontal arm length (to carpal Center): 600mm
Vertical arm length (to mounting surface): 885mm
Vertical arm length (to carpal Center): 820mm
Other arm length configuration Installation type: Table, Ceiling , Angle
Cleanliness and ESD standard: ISO 3 clean & ESD
Subscriber line Wire: 9 (Interface connector)
Air: 4
Environmental applicability Temperature: 5- 40 deg C
Humidity: 10 - 80% (non condensing)
Safety standards CE
JIS B 8433
UL1740
ANSI/RIA R15.06-1999
Available controllers RC700 micro power driven
PC based rc620 + (launched) high performance
Range of motion J1 (Turning): +/-170 deg
J2 (Lower Arm): -160 to +65 deg
J3 (Upper Arm): -51 to +225 deg
J4 (Wrist Roll): +/-200 deg
J5 (Wrist Bend): +/-135 deg
J6 (Wrist Twist): +/-360 deg
Motor Wattage J1: 400 Watts
J2: 400 Watts
J3: 150 Watts
J4: 50 Watts
J5: 50 Watts
J6: 50 Watts
Braking All 6 axes have
Others Visual guidance
NET support
Device network, Ethernet, Multiple Fieldbus
Belt tracking
GUI Builder
Security
Robot cable 3M (Standard), 5m (Optional), 10m (Optional)



The Epson prosix C4 series also offers greater efficiency. Among them, the load capacity can be
increased to 4kg, while the manipulator is still as light and compact as its previous generation. Ideal for
handling lightweight materials in a limited space environment.

Our six axis industrial robots prosix C4 and c4l have revolutionary Epson sensor technology, which greatly
reduces vibration in motion. Both high starting speed and high braking speed - the power used to achieve
hitherto unimaginable power data is stable.

Suitable for low load and high working range
The new six axis industrial robots C4 and c4l are part of the highly effective Epson prosix series,which you
can use to give full play to the full potential of your resources. Because the working C4 range is spherical,
they are ideal for complex parts handling or installation. Even in the limited working space, they will bring a
very comfortable feeling with the help of their flexibility and slender manipulator design. When multiple industrial
robots work in the same unit, very few interference contours reduce the risk of collision. Through the innovative
hinge structure developed by Epson, the rotation radius is smaller and the swing range is larger. The rotation
angle of the fifth axis is ± 135 ° to achieve a higher degree of freedom.

The new Epson robot controller rc700 is compact and economical, and has its own service
package - a new PC based unit control device. Rc700 can communicate with all common
fieldbus systems and can be connected to more controls, sensors, brakes and conveyor belts.
