3 Axis CNC Machine With Collaborative Robot Arm UR10e Cobot For High Precision Milling

Place of Origin China
Brand Name Sodick
Model Number UH650L LN4X
Minimum Order Quantity 1
Price 40000~50000$
Packaging Details wooden box
Delivery Time According to requirement
Payment Terms T/T
Supply Ability 30PCS/30Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
X/Y/Z Axis Travel (mm) 620 X 500 X 300 Table Dimensions (W X D, Mm) 750 X 500
Max. Workpiece Weight (kg) 150 Distance From Floor To Table Top (mm) 825
Machine Dimensions (W X D X H, Mm) 1,825 X 3,220 X 2,540 Machine Installation Dimensions (mm) 3,100 X 4,500
Machine Weight (kg) 8,000 Spindle Speed (min) 6,000 ~ 40,000
Maximum Load On Table (kg) 150 Electrode Guide To Table Surface (mm) 150 To 450
High Light

High Precision CNC Milling Machine

,

Collaborative Robot 3 Axis CNC Machine

,

UR10e Cobot CNC Machine

Leave a Message
Product Description
Product Description
3 Axis CNC Machine With Collaborative Robot Arm UR10e Cobot For High Precision Milling 0
UH650L LN4X
The Sodick UH650L Vertical Machining Center features Sodick’s patented energy saving linear motors and linear scales with five-place decimal input and feedback. This combination results in unsurpassed speed and accuracy with almost zero backlash. This leads to a machine tool that can handle the most complex, three-dimensional contours better than any other machine in its class. With an impressive acceleration rate of 1G, superior stability and the highest degree of precision down to nanometer are the top attributes of this innovation. The Sodick HSM has begun a new era in high precision milling. Unlike the conventional method of separately executing rough and fine milling, this new technology combines both machining passes in one operating mode. The solution is a rapidly rotating and traversing of small tool diameter that cuts to very fine depths.
3 Axis CNC Machine With Collaborative Robot Arm UR10e Cobot For High Precision Milling 1
3 Axis CNC Machine With Collaborative Robot Arm UR10e Cobot For High Precision Milling 2

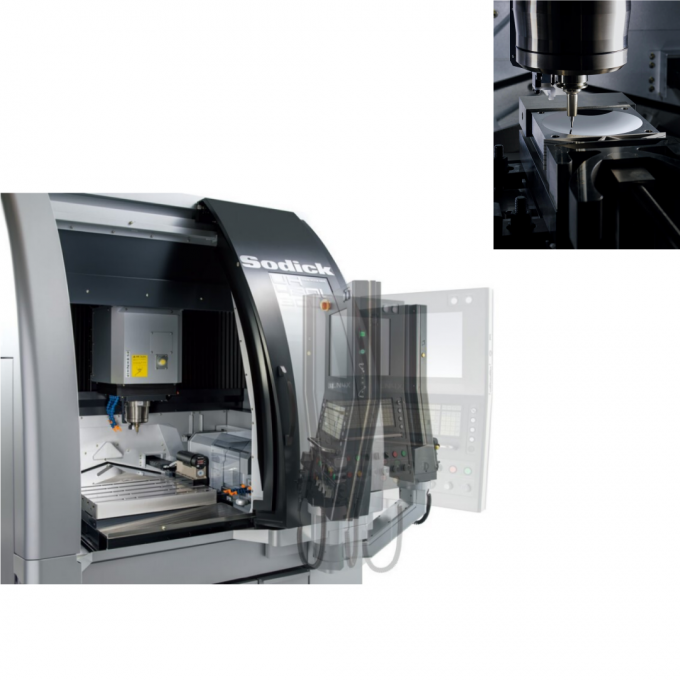

3 Axis CNC Machine With Collaborative Robot Arm UR10e Cobot For High Precision Milling 3
Specification
item
value
Place of Origin
China
Brand Name
Sodick
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2024
Warranty of core components
1 Year
Core Components
PLC
Warranty
1 Year
Key Selling Points
Automatic
Weight (KG)
8000
Applicable Industries
Other
Showroom Location
Russia, Thailand
X/Y/Z axis travel (mm)
620 x 500 x 300
Table dimensions (W x D, mm)
750 x 500
Max. workpiece weight (kg)
150
Distance from floor to table top (mm)
825
Machine dimensions (W x D x H, mm)
1,825 x 3,220 x 2,540
Machine installation dimensions (mm)
3,100 x 4,500
Machine weight (kg)
8,000
Spindle speed (min)
6,000 ~ 40,000
Maximum load on table (kg)
150
Electrode guide to table surface (mm)
150 to 450
