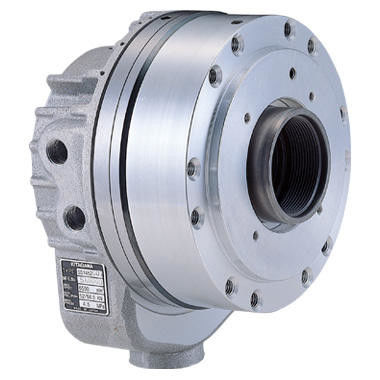

High Performance Rotary Cylinder With Large Through-Hole For Power Chuck
  • name
  • name
  • name
  • name
  • name

High Performance Rotary Cylinder With Large Through-Hole For Power Chuck

MOQ: 1
Price: N/A
Standard Packaging: wooden box
Delivery Period: According to requirement
Payment Method: T/T
Supply Capacity: 30PCS/30Day
Detail Information
Product Description
Detail Information
Place of Origin
Japan
Brand Name
Kitagawa
Model Number
SS series
Minimum Order Quantity:
1
Price:
N/A
Packaging Details:
wooden box
Delivery Time:
According to requirement
Payment Terms:
T/T
Supply Ability:
30PCS/30Day
Highlight:

Power Chuck Rotary Cylinder

,

High Performance Rotary Cylinder

,

Large Through-Hole Rotary Cylinder

Product Description

Description:

  • Accommodates BB200 and B-200 series
  • The compact design maximises lathe performance.
  • Compact: 30% reduction in length of conventional models.
  • Speed increased.
  • Can operate one size larger chuck due to increased pull force.
  • Built-in check valve and relief valve

  • *CE correspondence



    (Only models with stroke confirmation device)

​​Feature:

  • Kitagawa hydraulic SS cylinders are made with high grade alloy steel. The SS series cylinders are compact design to fit on size critical machines . While giving a larger pull force to allow for operation of a wide range of chucks. The cylinder can be bought as a single unit or to suit a required machine under request.

Specificaiton:



Model SS1246K SS1452C SS1452K SS1453K
Though Hole Diameter (mm) 46 52 52 53
Piston Stroke (mm) 16 22 22 22
Piston Area (cm2) Push Side 102.8 133 133 133
Pull Side 91.5 122.6 122.6 122.6
Draw Bar Thrust (kN) Push Side 43.6 56.5 56.5 56.5
Pull Side 38.9 52.1 52.1 52.1
Max. Operation Pressure (MPa) 4.5 4.5 4.5 4.5
Max. Speed (min-1) 8000 6500 6500 6500
Moment of Inertia (kg･m2) 0.017 0.031 0.031 0.031
Total Leakage (L/min) 3 3.9 3.9 3.9
Net Weight (kg) 8 13 13 13
