Leadshine DH116 DH2015 Dexterous Robotic Hand 5 Finger Intelligent Bionic Humanoid Robot Hand

MOQ: 1
Price: US $3000.00 - 3500.00/ Set
Standard Packaging: Plastic Box
Delivery Period: 6~8 weeks
Payment Method: T/T
Supply Capacity: 1000 sets per year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Leadshine
Model Number
DH116
Payload:
Whole Hand 40kg, Single Finger 10kg
Voltage:
DC 12V~DC 48V
Positioning Accuracy:
±0.2mm
Static Current:
0.05A
Weight:
490g±5g
Minimum Order Quantity:
1
Price:
US $3000.00 - 3500.00/ Set
Packaging Details:
Plastic Box
Delivery Time:
6~8 weeks
Payment Terms:
T/T
Supply Ability:
1000 sets per year
Highlight:

Leadshine DH116 robotic hand

,

5 finger bionic robot hand

,

intelligent humanoid robotic hand

Product Description

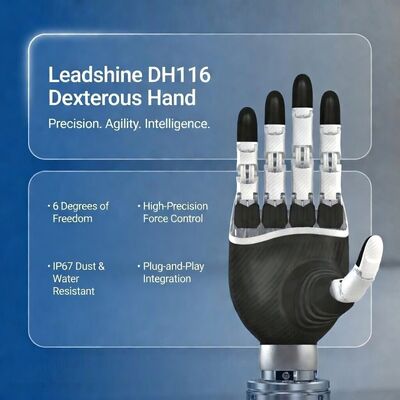

Leadshine DH116 Dexterous Hand
Product Overview

The Leadshine DH116 is a 5-finger dexterous robotic hand from the DH series. It features 6 active degrees of freedom + 5 passive, brushless coreless motors, planetary reducers, and hybrid force-position control. Designed for collaborative robots, humanoid hands and research/education platforms, it offers strong load capacity and perception at a competitive price point.

Technical Specifications
Parameter Specification
Total Degrees of Freedom 11 (6 active + 5 passive)
Motors Brushless coreless + planetary reducer
Communication EtherCAT (100 MHz), CAN/RS485 compatible
Maximum Load (whole hand) 40 kg
Maximum Load (single finger) 10 kg
Gripping Life > 100,000 cycles
Control Mode FOC current loop + tactile feedback + force-position hybrid
Series DH116
Application Industry
  • Collaborative robot end-effectors
  • Humanoid robot development
  • University & research lab robotics
  • Small-batch flexible automation
  • Education and training platforms
Common Problems & Solutions
  • Problem: Limited gripping force on heavy objects → Solution: 40 kg whole-hand load capacity
  • Problem: Poor perception in complex grasping → Solution: Tactile feedback + force-position hybrid control
  • Problem: Integration difficulty with cobots → Solution: EtherCAT high-speed communication & CAN/RS485 compatibility
Replacement Models
  • Leadshine DH2015 series (higher DOF version)
  • Older DH series prototypes or similar models
Why Buy From Us
  • Authorized Leadshine channel partner
  • Full factory calibration & test report included
  • Local technical support & integration guidance
  • Competitive pricing with warranty
Stock & Delivery Time
  • Standard models: in stock or 4–8 weeks
  • Customized versions: 8–12 weeks
RFQ Form

Please provide:

  • Application type (humanoid / cobot / research)
  • Required payload & gripping force
  • Communication protocol needed
  • Quantity & delivery timeline
  • Any special requirements (force sensing level, etc.)
Tags:

19 Degrees of Freedom Dexterous Hand,

23 Built-in Sensors Five-Finger Hand,

5 kg Load Capacity Robotic Hand
