Multi Finger Smart Robot Hand Leadshine DH116 DH2015 Humanoid Robot Hand Gripper Supplier

MOQ: 1
Price: US $3000.00 - 3500.00/ Set
Standard Packaging: Plastic Box
Delivery Period: 6~8 weeks
Payment Method: T/T
Supply Capacity: 1000 sets per year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Leadshine
Model Number
DH116
Payload:
Whole Hand 40kg, Single Finger 10kg
Voltage:
DC 12V~DC 48V
Positioning Accuracy:
±0.2mm
Static Current:
0.05A
Weight:
490g±5g
Minimum Order Quantity:
1
Price:
US $3000.00 - 3500.00/ Set
Packaging Details:
Plastic Box
Delivery Time:
6~8 weeks
Payment Terms:
T/T
Supply Ability:
1000 sets per year
Highlight:

Multi Finger Smart Robot Hand

,

Leadshine DH116 Robot Gripper

,

Humanoid Robot Hand Supplier

Product Description

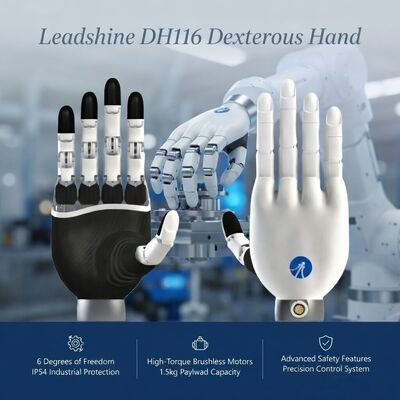

Leadshine DH116 5-Finger Dexterous Hand

Product Overview

Leadshine DH116 is a general-purpose 5-finger dexterous hand with 11 degrees of freedom (6 active). It combines brushless coreless motors, high-speed EtherCAT communication, and strong tactile/force perception. This model is built for collaborative robot applications, humanoid prototypes, and education/research platforms that need cost-effective yet capable dexterous end-effectors.

Technical Specifications

Parameter Specification
Active DOF 6
Total DOF 11
Drive Motors Brushless coreless + planetary reducer
Communication Interface EtherCAT (100 MHz), CAN/RS485
Whole Hand Load Capacity Up to 40 kg
Single Finger Load Capacity Up to 10 kg
Service Life (gripping) > 100,000 cycles
Control Algorithm FOC current + tactile feedback + force-position hybrid

Application Industry

  • Collaborative robot gripping & handling
  • Humanoid robot finger/hand development
  • Robotics research labs & universities
  • Training centers for AI & automation
  • Small-scale flexible manufacturing

Common Problems & Solutions

  • Problem: Low gripping force → Solution: 40 kg whole-hand rating
  • Problem: Difficult integration with cobots → Solution: EtherCAT + CAN/RS485 support
  • Problem: Perception accuracy → Solution: Tactile feedback + hybrid control

Replacement Models

  • Leadshine DH2015 series (20 DOF higher-end model)
  • Previous DH series prototypes

Why Buy From Us

  • Genuine Leadshine product with official warranty
  • Local technical consultation & integration help
  • Fast response & reasonable lead time
  • Complete documentation & SDK support

Stock & Delivery Time

  • Standard stock models: 4–8 weeks
  • Customized configurations: 6-8 weeks

RFQ Form Please send us:

  • Intended robot arm / cobot model
  • Required gripping force & payload
  • Communication preference (EtherCAT / CAN)
  • Quantity & target delivery date
  • Any special needs (force sensing range, etc.)
Tags:

19 Degrees of Freedom Dexterous Hand,

23 Built-in Sensors Five-Finger Hand,

5 kg Load Capacity Robotic Hand
